This type of control system can include more than one feedback. However while reducing the block diagram it is to be kept in mind that the output of the system must not be altered and the feedback should not be disturbed. Positive feedback control of the op amp is achieved by applying a small part of the output voltage signal at vout back to the non inverting input terminal via the feedback resistor r f.

3 phase star delta starter control diagram 3 wire light fixture wiring diagram 250 volt 20 amp plug 3 wire stove plug wiring diagram 3 wire with ground light switch 240v plug type 3 phase motor starter wiring 3 phase wiring diagram motor

The Basics Of Process Control Diagrams Technology Transfer Services

Control System Basics Ledin Engineering Inc

Closed Loop System

Examples Of Closed Loop Control System Electronics Coach

Control Systems Block Diagrams Tutorialspoint

7 General Block Diagram Of Control Loops A Open Loop And B Closed Download Scientific Diagram

This example is extended in figure 8 17 to include mathematical models for each of the function blocks.

Feedback control system block diagram examples. When the control system includes a feedback loop then the systems are known as feedback control systems. Closed loop control system block diagram. B tech e e uid u41000000484 email. An automobile cruise control system.

In other words practical representation of a control system is its block diagram. It is not always convenient to derive the entire transfer function of a complex control system in a single function. Similarly you can represent the positive feedback connection of two blocks with a single block. In this way closed loop control system is called automatic control system.

Feedback control 8 10 figure 8 16 moving summation function past blocks recall the example of a cruise control system for an automobile presented in fig ure 8 4. So to reduce the block diagram proper logic must be used. Note the transfer function present in this single block is the transfer function of the overall block diagram. This feedback automatically makes the suitable changes in the output due to external disturbance.

So the output can be controlled accurately by providing feedback to the input. Moving pickoff point a ahead of block 2g 2. The equivalent block diagram is shown below. Consider the block diagram shown in the following figure.

Control systems block diagram algebra. It is easier and better to derive the transfer function of the control element connected to the system separately. Control systems block diagram reduction. Some of this output voltage is returned back to the input by the feedback network.

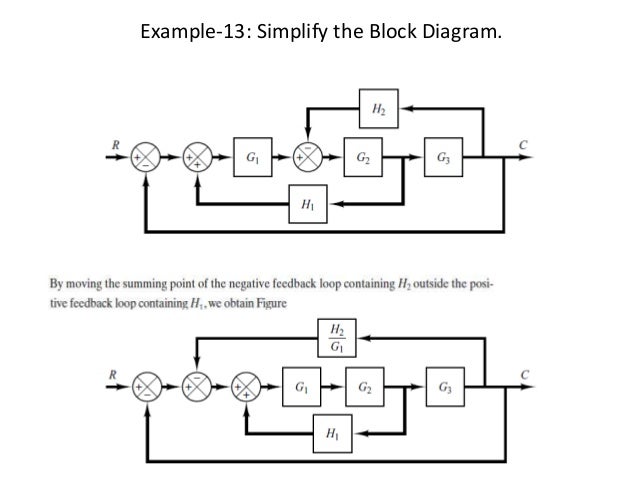

The block diagram is to represent a control system in diagram form. The transfer function of this single block is the closed loop transfer function of the negative feedback. Rule 3 check for the blocks connected in feedback loop and simplify. A control system for a twin lift helicopter system.

Figure below shows the block diagram of closed loop control system in which feedback is taken from output and fed in to input. Block diagram examples 1. A human arm control system. Draw the block diagram of the control system for the following cases.

Let us simplify. Example 9 find the transfer function of the following block diagrams 2g 3g1g 4g 1h 2h sy sr 3. If the input voltage vin is positive the op amp amplifies this positive signal and the output becomes more positive. Hence for the reduction of a complicated block diagram into a simple one a certain set of rules must be applied.

This block diagram is first simplified by multiplying the blocks in sequence. Control system engineering kuntumal sagar m.
